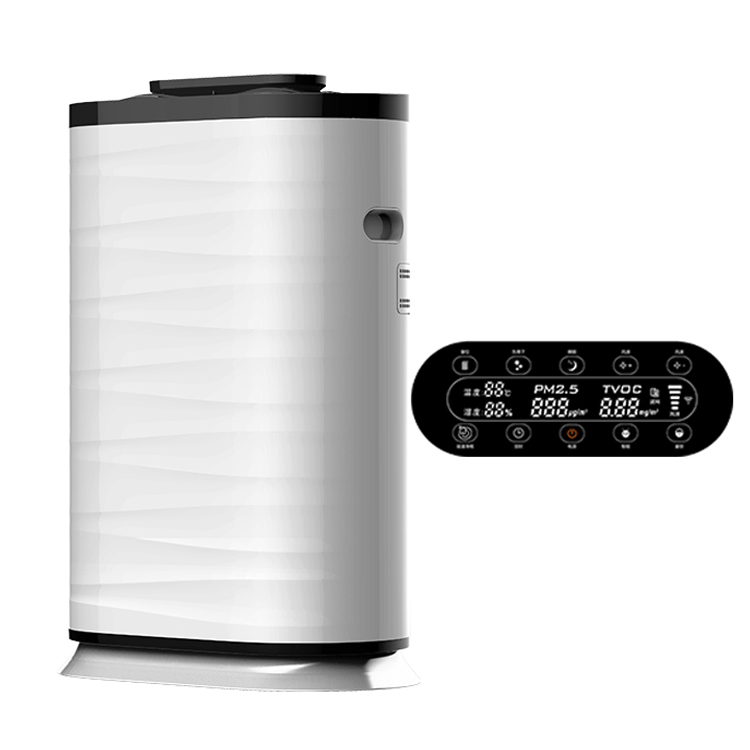

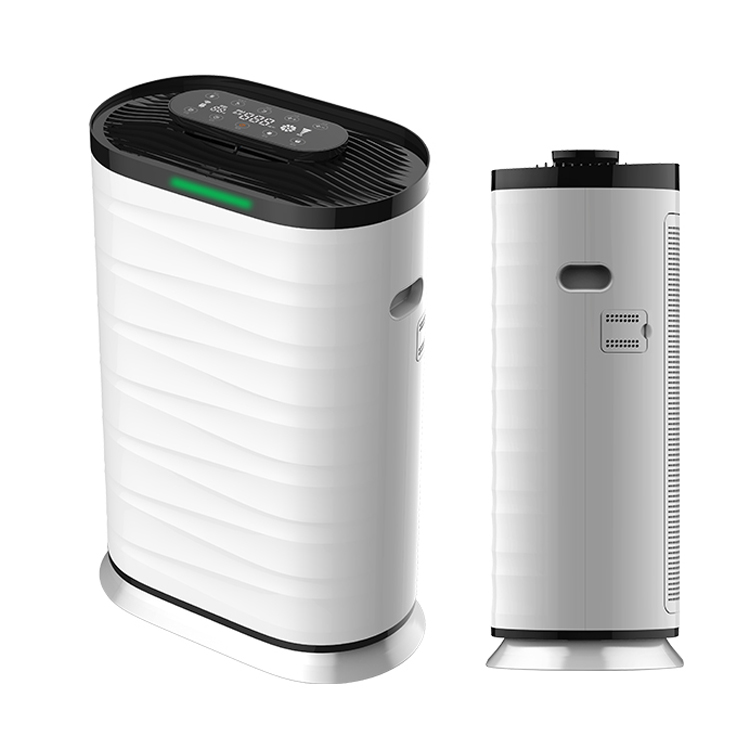

Air disinfector K09A

Machine Principle

“ High efficiency filtration + photocatalysis + room temperature catalytic killing & ldquo; Combinatorial technology

The whole machine adopts & ldquo; High efficiency filtration + photocatalysis + room temperature catalytic killing & rdquo; Based on the principle of hierarchical purification, the combined technology of dust, hair and other large particles and micro to 0.1 μ The fine particles of M are separated from the gaseous pollutants by solid-gas separation, and then the gaseous pollutants are quickly captured and degraded by the large pore volume inorganic medium supported by photocatalytic materials. Finally, the gaseous pollutants are deeply removed by room temperature catalytic technology

In the whole purification process, the active center on the surface of the advanced nano catalyst continuously dissociates the oxygen molecules in the air into activated oxygen molecules. Gaseous pollutants such as formaldehyde are completely oxidized and decomposed into non-toxic and harmless CO2 and H2O under the action of active oxygen. At the same time, the activated oxygen molecules completely kill virus bacteria. So as to achieve the triple effects of antivirus and sterilization, efficient degradation of pollutants (formaldehyde, TVOC, etc.) and deep removal of particles.

Technical Parameter

Name：	Air cleaner
Model：	K09A
Series：	Air purification series
Colour：	White
Body material：	ABS
Net weight（kg)：	10.5
Noise：	32.9（dB）
Rated voltage(v)：	220
Rated power：	85
Size(mm)：	479x269x710
Purification project：	PM2.5,Second hand smoke,Formaldehyde,Air suspension
Purification mode：	Cold catalyst filtration honeycomb activated carbon filtration HEPA filtration
Clean air purification capacity	600m³ / h (applicable to PM2.5)
Applicable area：	42-72㎡

Confined space air disinfection machine technology, carbon cloth and its anti-virus purification module and nano photocatalysis are the key and original air disinfection and purification technologies of the company.
